Características
Affordable High-Performance Solutions

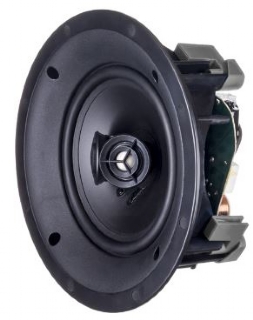

Installer Series is our affordable high-performance lineup, featuring custom installation solutions for in-wall, in-ceiling, and outdoor applications

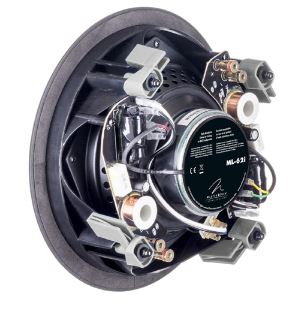

Titanium dome tweeters and mineral-filled polypropylene drivers ensure great performance, while bezel-free paintable grilles that are secured with high-strength magnets provide an aesthetic that blends invisibly into any room. Each model comes with an extremely robust mounting-lock system that couples with the speaker’s vibration- resistant ABS chassis when installed.
SPECIFICATIONS
Frequency Response
70–20,000 Hz ±2 dB
Crossover Frequency
3,000 Hz
Sensitivity
89dB
Aiming
Rotate speaker assembly
Impedance
Compatible with 4 ohms mono / 8 ohms stereo
High-Frequency Drivers
Two 3/4” (1.9cm) titanium domes
Low-Frequency Driver
Dual voice-coil 6-1/2” (16.5cm) mineral-filled
polypropylene
cone
Binding Post Inputs
Spring clip accommodates wire up to 12AWG
Suitable Amplifier Range
15–80 Watts mono / 15–40 Watts stereo
Maximum Power Handling
50 Watts
Weight
3.5 lbs. each (1.6 kg)
Overall Size (dia. x depth)
8.8” x 3.6” (22.4 x 9cm)
Required ceiling opening (including tolerance)
7-3/4” (19.6cm)
Projection from wall surface
0.2” (0.5cm)
Depth required behind wall surface
